HistoQuarterly: NODULAR SCLEROSING HODGKIN LYMPHOMA

Working in a histology lab means that I get to see a lot of what our body looks like under the microscope.  Quarterly I will share with you some of my photos from the microscopic world of our inner space and tell you a little bit about what we’re looking at.

This quarter we’re taking another look at the lymph node, but this time it’s one that contains the pathology of a nodular sclerosing Hodgkin lymphoma.

Before we dive into the pathology, let’s take a look at two different benign appearances of a lymph node:

First of all, when we aren’t fighting infection, our lymph nodes are in a non-reactive state. This is what the architecture of a non-reactive lymph node looks like at low magnification:

Lymph Node - low magnification (image credit: [click to source] wikicommons, adapted)

A non-reactive lymph node (low magnification)
(image credit: [click to source] wikicommons, adapted)

When we are fighting infection, however, our lymph nodes become reactive and start producing antibodies against the non-self antigen (such as a bacterium) that has been detected. When this happens, distinctive rounded structures called follicles begin to form, and this is what they look like at a low magnification:

As the B-cells multiply, this process is displayed by the appearance of these roughly circular "follicles".  The paler central zones are known as germinal centers.

As the B-cells multiply, this process is displayed by the appearance of these roughly circular “follicles”. The paler central zones are known as germinal centers.

For a more detailed description of why and how these follicles form, please see a previous HistoQuarterly edition on the lymph node.

What is lymphoma?

A lymphoma is a cancer that arises from lymph glands or organs within our lymphatic system, such as the lymph nodes and bone marrow. Lymphoma itself describes a wide range of cancers from this system, but all of them can be classified into two main groups; Hodgkin Lymphoma and Non-Hodgkin Lymphoma. How they are classified depends on the presence of one type of cell called the Reed-Sternberg cell, which is only found in Hodgkin Lymphoma. These owlface-shaped (you’ll see soon) cells are thought to have been antibody-producing cells (a type of B-cell called a plasma cell) that have now become malignant.

This blogpost focuses on the histopathology of the nodular sclerosing subtype of Hodgkin Lymphoma (HL). Altogether, there a four main classic types of HL, but nodular sclerosing is the most common in developed countries, accounting for approximately 60% of patients diagnosed with HL.

So let’s take our first look at this lymphoma at low magnification:

A low magnification H&E showing dense bands of collagen causing effacement of lymph node architecture and formation of distinct nodules.

A low magnification H&E showing dense bands of collagen causing effacement of lymph node architecture, and formation of distinct nodules.

Comparing this lymph node with the reactive lymph node, you can see the distinct difference between the appearance of follicles and nodules due to the dense collagen (pink) in between the latter. It’s this accumulation of collagen and the resulting formation of these nodules that earn this type of lymphoma its “nodular sclerosing” title. “Sclerosis” is a word often used to describe an overgrowth of fibrous, connective tissue.

The collagen is much clearer at higher magnification:

High magnification H&E showing dense collagen bands and the mixture of cells within the nodules.

High magnification H&E showing dense collagen bands and the mixture of cells within the nodules.

What can also be seen in the above image is the mixture of different cell types within the nodule; small lymphocytes (small, dark staining rounded cells), plasma cells (eccentric nucleus), eosinophils (dark pink cells) and pale histiocytes (vary in appearance). At this stage of the diagnosis, the pathologist would know that such an increased mixture of cells, particularly eosinophils, is a significant characteristic of both T-cell and Hodgkin lymphomas. [To see normal lymph node cell mixtures, see here].

Now let’s take a closer look at some of the other cells inside the nodule:

Medium magnification H&E of the nodule demonstrating irregular, large, often multinucleated cells that resemble Hodgkin Cells (HC). Owl-faced Reed-Sternberg (RS) cells can be seen, as well as lacunar Reed-Sternberg (LRS) cells with their lacunae, or halo (arrowhead).

Medium magnification H&E of the nodule demonstrating irregular large cells such as the mononuclear Hodgkin Cells (HC); the binucleated owl-face Reed-Sternberg (RS) cell, and the lacunar Reed-Sternberg (LRS) cells with single hyperlobulated nucleus and lacunae, or halo, caused by the retraction of its cytoplasm (arrowhead).

High magnification H&E demonstrating more clearly the binucleated owl-face Reed-Sternberg (RS) cells and lacunar Reed-Sternberg (LRS) cells with their lacunae (arrowhead).

High magnification H&E demonstrating more clearly the binucleated owl-face (see!) Reed-Sternberg (RS) cells and lacunar Reed-Sternberg (LRS) cells with their lacunae (arrowhead).

These H&E images are enough to convince us that what we’re looking at are in fact those Reed-Sternberg cells, and thus a type of Hodgkin Lymphoma. But, a pathologist will also use immunohistochemistry (IHC) to determine the cell lineage of the tumour and these large irregular cells in order to confirm the full diagnosis.

Immunohistochemistry (IHC)

In brief, IHC uses solutions containing antibodies that bind to specific antigens/markers. The solution is poured onto the tissue section to allow the antibodies to bind to the antigen of interest (if present). These antibodies also bind to a chromogen (colour signal) that stains brown when the antigen/marker is present.

In this particular case study, the pathologist used five different IHC antibodies to highlight different cell lineages, and these were CD3 (CD stands for “cluster of differentiation”), CD20, CD45, CD30 and CD15.

CD3 is used to identify the T-cell lineage. Here’s how the sample stained up:

Low magnification of IHC CD3 showing a dense T-cell population within the nodules that form "rosettes" around the CD3 negative large cells.

Low magnification of IHC CD3. The boundary of the nodule is marked with red outline. There is a dense T-cell population within the nodules, and they are also forming “rosettes” around the CD3-negative large cells.

High magnification IHC CD3 showing that hugging "rosette" pattern of T-cells around the large irregular cells.

High magnification IHC CD3 showing that hugging “rosette” pattern of T-cells around the large irregular CD3-negative cells (arrowheads)

From this, we can now confirm that the large cells are not of T-cell lineage.

Next up, the sample is stained with CD20 to identify cells of the B-cell lineage:

Low magnification IHC CD20 demonstrating cells of B-cell lineage, which seem sparse and confined to the periphery of the nodule only.

Low magnification IHC CD20 demonstrating cells of B-cell lineage, which seem sparse and confined to the periphery of the nodule only.

High magnification IHC CD20 demonstrating negativity in the large irregular cells.

High magnification IHC CD20 demonstrating CD20-negative large irregular cells (arrowheads).

So far, the large cells have not stained with either T- or B-cell markers. The next molecular profile is CD45, which identifies cells of the human leukocyte lineage including lymphocytes, monocytes and eosinophils. Here’s the result:

Medium magnification IHC CD45 demonstrating a not-surprising dense population of CD45 positive cells.

Medium magnification IHC CD45 demonstrating a not-surprising dense population of CD45 positive cells.

High magnification IHC CD45 demonstrating negative large cells.

High magnification IHC CD45, however, confirms the large irregular cells are CD45-negative also.

These IHC results are fairly inconclusive when used independently without further IHC tests because they are just used to determine a generic picture of cell lineages involved in the pathology rather than to confirm a specific diagnosis.

To confirm HL, the pathologist would also use CD30, which stains Reed-Sternberg and Hodgkin cells:

Medium magnification IHC CD30 demonstrating large cell positivity.

Medium magnification IHC CD30 demonstrating large cell positivity.

High power IHC CD30 demonstrates positivity in the Reed-Sternberg cells and mononuclear Hodgkin cells (arrows). CD30 hs a characteristic staining pattern in large-cell membranes, and the Golgi apparatus - the dark paranuclear dot (arrowhead).

High power IHC CD30 demonstrates positivity in the Reed-Sternberg cells and mononuclear Hodgkin cells (arrows). CD30 has a characteristic staining pattern in large-cell membranes, and the Golgi apparatus – the dark paranuclear dot (arrowhead).

CD15 stains granulocytes and most monocytes, but it can also be used to confirm Reed-Sternberg cells with the same characteristic staining pattern as CD30:

High magnification IHC CD15 demonstrating the cell membrane positivity in the large cells, and the dark dot staining of the paranuclear Golgi apparatus.

High magnification IHC CD15 demonstrating the cell membrane positivity in the large cells, and the dark dot-staining of the paranuclear Golgi apparatus.

With the histological appearances and the outcome of the IHC panel, this can now be confirmed as classical Hodgkin lymphoma, nodular sclerosing subtype.

Treatment

Cancer research had advanced so considerably in this field that it is common now for the majority of patients treated for Hodgkin Lymphoma to become completely cured. This does, however, depend on the stage of the HL at diagnosis.

Follow up from this diagnosis to determine its stage would include assessing other node and/or organ involvement using various tests:

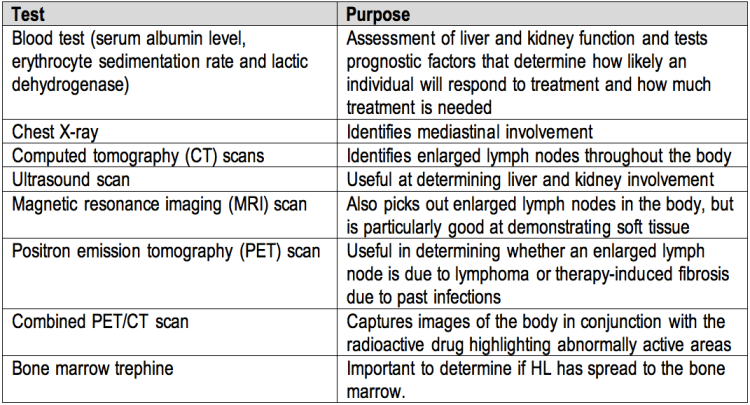

Further tests and methods used to assist in staging of HL and to monitor how the individual is responding to treatments. (Ref: http://www.cancerhelp.org.uk/type/hodgkins-lymphoma/diagnosis/further-tests-for-hodgkins-lymphoma)

Further tests and methods used to assist in staging of HL and to monitor how the individual is responding to treatments. (Ref: http://www.cancerhelp.org.uk/type/hodgkins-lymphoma/diagnosis/further-tests-for-hodgkins-lymphoma)

Bone marrow trephines are painful and sometimes a stressful procedure, but Moulin-Romsee et al., 2010 have found a promising possibility of combining positron emission tomography (PET) and computed tomography (CT) scans, which may render the trephine biopsy obsolete after finding a significant correlation of results between the two methods.

*******************************************************
