Fallopian Tube, Histology, HistoQuarterly

HistoQuarterly: FALLOPIAN TUBE

Working in a histology lab means that I get to see a lot of what our body looks like under the microscope.  Quarterly I will share with you some of my photos from the microscopic world of our inner space and tell you a little bit about what we’re looking at.

The organ of focus this quarter is the fallopian tube.

Also known as the uterine tube or the oviduct, the fallopian tube exists as paired structures, extending from both sides of the uterine cornu, and continuing outwards along to the ovaries.  Despite being just a tubular structure, it actually has four distinct anatomical regions:

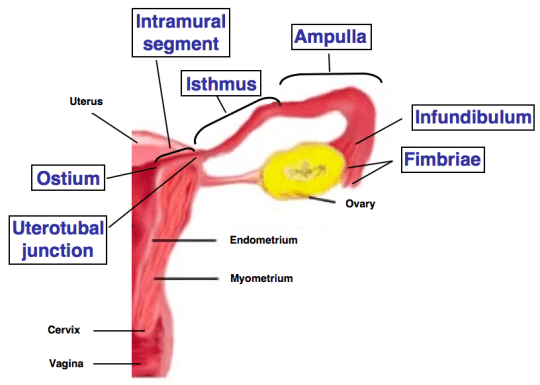

Image showing Fallopian Tube Anatomy

Fallopian Tube Anatomy [image adapted from wikicommons]

The infundibulum

This is the region closest to the ovary, the name of which is derived from a word meaning “funnel-shaped”.  It is a wide opening (just like a funnel, actually), consisting of a thin layer of smooth muscle in its wall, and 20-30 finger-like projections known as fimbriae, which fan out into the pelvic cavity, facing towards the ovary.  The function of the fimbriae is to coax and drag the ovum from the ovary, into the tube.  This open-ended entry point is also known as the peritoneal ostium.  One large fimbria (fimbria ovarica) is attached to the ovary in order to keep the two organs close together and prevent the ovum from wandering off into the pelvic cavity.

The ampulla

This is the region, adjacent to the infundibulum, where fertilisation occurs.  It spans the longest length of the tube (approximately 4-6 cm), contains the widest region of the tube and also its most tortuous.  It has a relatively thin wall, which contains two layers of smooth muscle.

The isthmus

This region originates at the point where the tube meets the uterus (the uterotubal junction).  It is about half the length of the ampulla and, roughly, twice as thick due to its extra layer of smooth muscle in the wall.

The intramural segment

This is the fallopian tube’s shortest region.  It extends from the uterotubal junction, through the thickness of the uterine wall (the myometrium and endometrium), and opens out into the uterine cavity at the uterine ostium.  The left and right ostia are quite prominent and so can be viewed hysteroscopically.  If you’re interested in seeing what they look like, click here to see an image taken of them during a hysteroscopy examination.

The Microscopic Human Fallopian Tube

An image showing a low power magnification Haematoxylin and Eosin (H&E) of the human fallopian tube

A low power H&E of the human fallopian tube.

A low power H&E stained section of the human fallopian tube.

Cells of the tube

Mucosa

The lumen (the actual hollow bit of the tube) is made up of mucosal folds (plicae) that are lined by simple columnar epithelium (i.e. a single layer of rectangular shaped – like a column – cells).  The folds are more prominent in the ampulla region:

An image showing a medium power Haematoxylin & Eosin  stained section of the ampulla region of the fallopian tube

A medium power H&E stained section of the ampulla region, showing many folds in the mucosa. [image adapted from wikicommons]

These folds are least prominent in the isthmus:

An image showing a medium power Haematoxylin & Eosin stained section of the isthmus region of the human fallopian tube

A medium power H&E stained section of the isthmus region, showing minimal folds in the mucosa.

There are two types of simple columnar epithelium in the fallopian tube, too; these are ciliated and non-ciliated epithelium.

An image showing a high power Haematoxylin & Eosin stained section of simple columnar epithelium (ciliated and non-ciliated) in the human fallopian tube.

A high power H&E stained section showing the two types of simple columnar epithelium in the human fallopian tube.

  • Ciliated columnar epithelium

Cilia are microscopic hair-like structures that act like tiny oars, beating backwards and forwards along the length of the tube.  The size of the cilia varies depending on levels of circulating oestrogen.  Around the time of ovulation, high oestrogen levels cause the cilia to reach their maximum size.  These high levels also stimulate their activity, thus increasing their “beat”.  The combination of these effects achieve optimal propulsion of the ovum towards the uterus.  Ciliated columnar epithelium is most abundant at the ampulla, where it is needed most to prevent the ovum from entering the pelvic cavity.  During the last stage of the menstrual cycle (particularly luteolysis), when the progesterone levels are high, the cilia remain redundant and so degenerate.

  • Non-ciliated columnar epithelium

Also known as “peg cells“, these are secretory cells whose function is to provide nutrients to the egg as it migrates through the tube.  They don’t contain any cilia, but they do have microvilli, which are like tiny folds in the cell membrane, very much like the mucosal folds we saw earlier but on a much more microscopic level as the folds are on the individual cells rather than a mucosal lining.  Similar to cilia, these microvilli also lengthen when stimulated by oestrogen and shorten when progesterone levels rise.  The secretory activity of these cells are also stimulated by oestrogens, making it very timely for ovum migration, too.  This type of epithelium is more prominent at the isthmus.

Lamina propria

This layer is directly below the mucosa and is made up of connective tissue and a large number of blood vessels (see previous images).

Muscularis

The muscle fibres within the muscularis show two different patterns in the same tissue section, and this is because some muscle fibres are arranged so they lay along the length of the lumen, whereas other fibres wrap around it.  Those that are along the length of the lumen are known as longitudinal muscle fibres, and when these contract they shorten the length of the tube.  Those that wrap around the lumen are called circular muscle fibres, and when these contract they cause the lumen to become narrower.

If we take a look back at a higher power photomicrograph of the first image we saw, you can see distinct patterns of the smooth muscle, with the uniform circular pattern of the circular muscle fibres wrapping around the lumen, appearing far more prominent than the dotty and sporadic pattern of longitudinal muscle fibres.

An image showing a low power Haematoxylin & Eosin stained section of the human fallopian tube, showing the patterns formed by longitudinal and circular muscle fibres.

A low power H&E stained section showing the patterns formed by longitudinal and circular muscle fibres.

The infundibulum contains just one layer of longitundinal smooth muscle.  The ampulla contains two layers; one longitudinal layer and one circular layer.  The isthmus has a much thicker wall than the rest of the fallopian tube, and this is owing to the three layers of longitudinal and circular smooth muscle in its wall.  The function of these muscle layers, much like the muscles in our food pipe that move our food along, are to contract in coordination so that the ovum can be propelled towards the uterus.  This process is also complemented by the ciliary activity of the columnar epithelium, which we saw earlier.  The complex coordination of the contractions are also put to use in the opposite direction, when the time is right, to assist the sperm in reaching the ovum.

Serosa

This is the outermost layer of the tube, which contains a lot of large blood vessels.  It is also covered by a single layer of peritoneal mesothelium, which is a covering of the abdominal cavity lining (the peritoneum).  The peritoneal mesothelial cells can be found along the very edge of the fallopian tube appearing only occasionally in the section with a seemingly flattened shape.

An image showing a high power Haematoxylin & Eosin stained section of the human fallopian tube serosal surface with peritoneal mesothelial cells.

A high power H&E stained section of the serosal surface showing the flattened appearance of peritoneal mesothelial cells.

And that’s basically the histology of the human fallopian tube.  So, to finish off, here’s an image of this simple but incredible organ in action:

An images showing t role of fallopian tubes in fertilisation and pregnancy.

The role of fallopian tubes in fertilisation and pregnancy. [image adapted from wikicommons]
